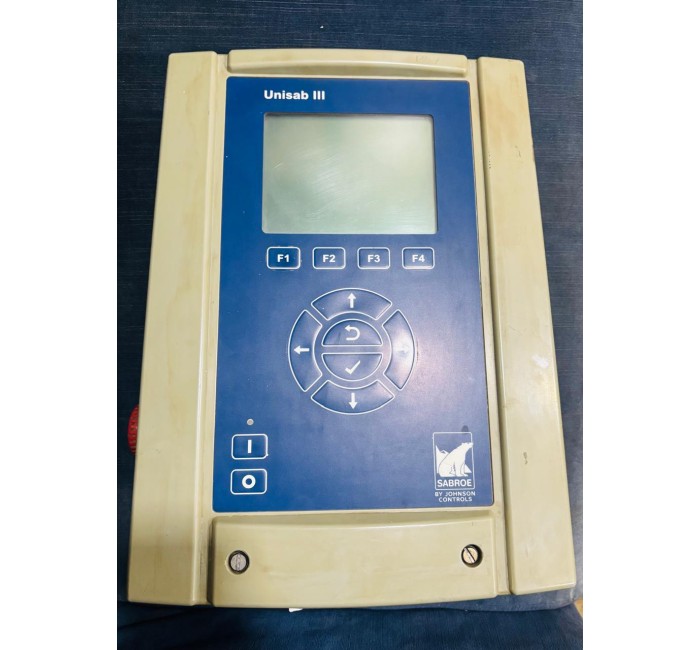

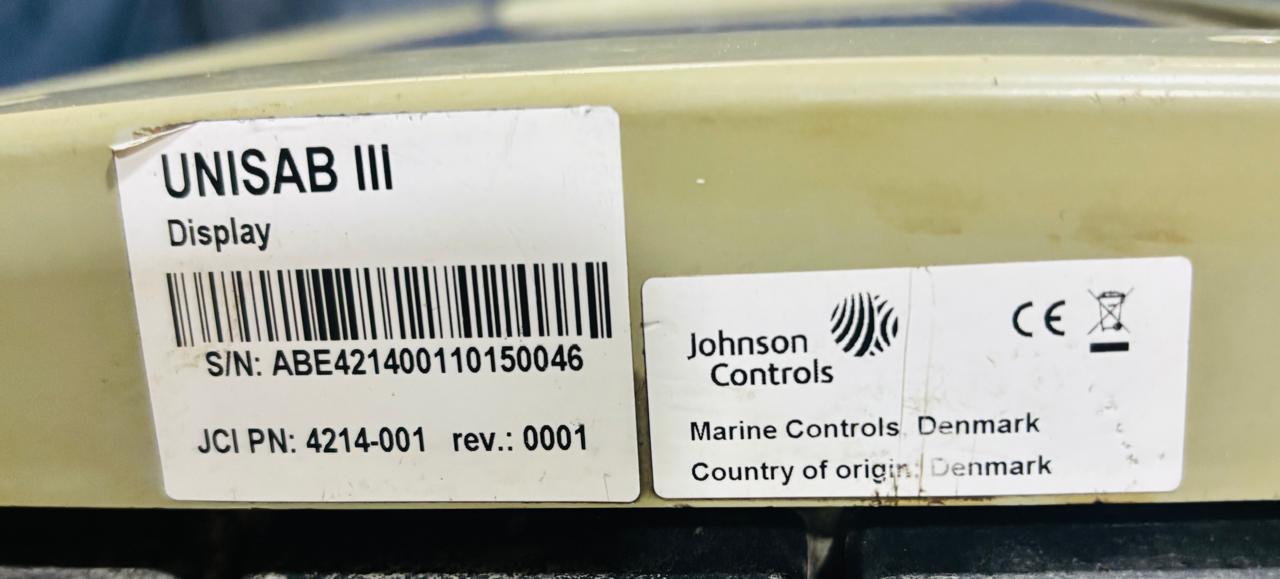

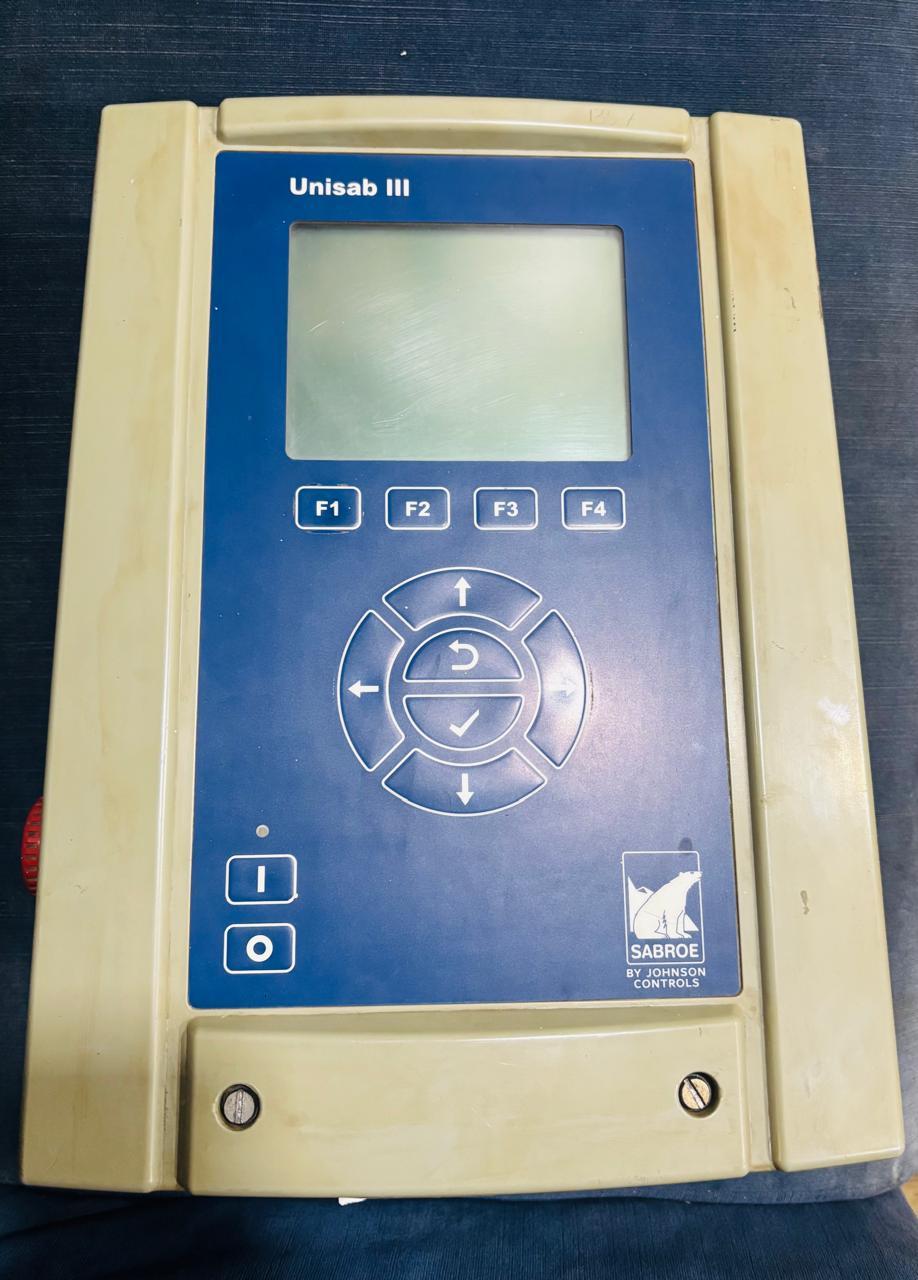

SABROE UNISAB III CONTROLLER
Description
Power supply: Nominal VAC Tolerance Hz 85-250 Consumption: Ambient temperature: Humidity: 32 VA 0-55°C (during operation) 47-63 10-90% relative humidity (not condensing) Tightness: Operating manual - Unisab III 1.10.5 005650 en 2015.08 IP 54'
Technical Specifications
- Power Supply: Nominal 85–250 VAC at 47–63 Hz
- Power Consumption: 32 VA
- Operating Ambient Temperature: 0°C to 55°C (32°F to 131°F)
- Relative Humidity: 10% to 90% non-condensing
- Enclosure Protection: IP54 rating [1]
- System and Control Features
- Compatibility: Configurable for both reciprocating and screw compressors (with or without VSD) and any refrigerant type.
- Capacity Control: Built-in regulation for suction pressure, water temperature, and discharge pressure.
- Safety Functions: Integrated limits for high/low pressure and motor current overload alongside emergency stop monitoring.
If you need specific information, tell me if you are looking for:- Wiring or terminal connections
- Modbus communication/register addresses
- Alarm troubleshooting codes
